Build the project¶

To build,

Press Ctrl+Shift+B, or
Call the prompt with Ctrl+Shift+P, enter Tasks: Run Task and select Build.

Define parallel build¶

By default, emCode use parallel build to speed-up the process. The parallel build uses as many threads as cores available.

The impact of parallel build on speed depends on the number of cores of the microprocessor.

If parallel build is unstable, return to the standard build with one thread.

To reverse to standard build with one thread,

Open the tasks.json file under the .vscode folder of the project;
Remove the "-j", line from the task arguments.

    "tasks": [
        {
            "label": "Build",
            "type": "shell",
            "command": "make",
            "args": [
                "build",
                "-j",
                "SELECTED_BOARD=${command:cpptools.activeConfigName}"
            ],
            "group": {
                "kind": "build",
                "isDefault": true
            },
            "detail": "Build with makefile"
        },
    ]

Define compiler options¶

Some project may require additional options.

Open the main Makefile and
Add the parameters to the variable COMPILER_OPTIONS in the main Makefile.

 Compiler options
 ----------------------------------
 If 0 or empty, no additional options

COMPILER_OPTIONS = -fpermissive

In this example, -fpermissive has been added.

 Compiler options
 ----------------------------------
 If 0 or empty, no additional options

COMPILER_OPTIONS = -Wl,-u,_printf_float,-u,-_scanf_float

In this example, formatting float numbers has been added.

COMPILER_OPTIONS = -flto

In this example, the -flto implements link time optimisation on GCC to optimise the executable size.

For more information on the authorised parameters,

Please refer to the compiler documentation.

Define linker options¶

Some project may require additional options.

Open the main Makefile and
Add the parameters to the variable LINKER_OPTIONS in the main Makefile.

 Compiler and linker options
 ----------------------------------
 If 0 or empty, no additional options

COMPILER_OPTIONS =
LINKER_OPTIONS = -Wl,--check-sections

In this example, -Wl,--check-sections has been added.

For more information on the authorised parameters,

Please refer to the compiler documentation.

Define warning messages¶

Contrary to errors, warnings don’t stop compilation but they point at possible cause of errors.

The variable WARNING_OPTIONS on the main Makefile selects the scope of the warning messages.

By default, the variable WARNING_OPTIONS is set to 0: no warning messages are reported.

 Warning options
 ----------------------------------
 For example, unused variables with unused-variable.

 If 0, no warnings
 If empty, all warnings, same as WARNING_OPTIONS = all
 WARNING_OPTIONS = all no-missing-braces no-conversion-null no-pointer-arith
 WARNING_OPTIONS = unused-variable unused-function unused-label unused-value no-conversion-null no-pointer-arith

WARNING_OPTIONS = 0

If WARNING_OPTIONS is left empty, all warnings are displayed. This is the same as WARNING_OPTIONS = all.

 Warning options

WARNING_OPTIONS = all

The all option corresponds to the -Wall parameter and usually generates a very long list of warning messages, making the analysis difficult if not impossible.

The solution consists on selecting a scope and targeting specific warnings.

Define the selected warnings by listing the options after the variable WARNING_OPTIONS.

Here are two examples:

To check all the unused elements and save precious SRAM and Flash memory, define the following warning options.

 Warning options

WARNING_OPTIONS = unused-variable unused-function unused-label unused-value

To check all the use of NULL, define the following warning options.

 Warning options

WARNING_OPTIONS = conversion-null pointer-arith

For more information on the many other warning messages options,

Please refer to the Using the GNU Compiler Collection Manual .

Define a binary specific name¶

Some project may setting a specific name for the binary. Default names of the binaries are based on emcode: emcode.bin, emcode.hex, emcode.elf and alike.

To define a specific binary name,

Open the main Makefile;
Add or edit the line BINARY_SPECIFIC_NAME; and
Define a binary specific name.

 C-compliant project name and extension
PROJECT_NAME_AS_IDENTIFIER = embed1

 Binary name, default=emcode
BINARY_SPECIFIC_NAME = $(PROJECT_NAME_AS_IDENTIFIER)

In the example, the binary specific name is set to embed1, the C-compliant name of the project through the variable $(PROJECT_NAME_AS_IDENTIFIER).

Just enter whatever value after BINARY_SPECIFIC_NAME to set another name,

 Binary name, default=emcode
BINARY_SPECIFIC_NAME = myBinarySpecificName

Define message options¶

The terminal window of Visual Studio Code reports the progress of the task with two lines.

4.3-LOCAL CPP     main.cpp.o
~/.arduino15/packages/RaspberryPi/tools/pqt-gcc/4.0.1-8ec9d6f/bin/arm-none-eabi-g++ -c -Werror=return-type -Wno-psabi -Os -g3 -w -march=armv6-m -mcpu=cortex-m0plus -mthumb -ffunction-sections -fdata-sections -fno-exceptions -lstdc++ -pipe -DARDUINO=20302 -DARDUINO_ARCH_RP2040 -DEMCODE=140506 -DARDUINO_VARIANT='"rpipico"' -DF_CPU=125000000L -DARDUINO_RASPBERRY_PI_PICO -BOARD_NAME='"Raspberry Pi Pico"' -MMD -DLWIP_IPV6=0 -DLWIP_IPV4=1 -DLWIP_IGMP=1 -DLWIP_CHECKSUM_CTRL_PER_NETIF=1 -I./LocalLibrary/src -I. -DUSB_MANUFACTURER='"Raspberry Pi"' -DUSB_PRODUCT='"Pico"' -DUSBD_PID=0x000a -DUSBD_VID=0x2e8a -DUSBD_MAX_POWER_MA=250 -DPICO_FLASH_SIZE_BYTES=2097152 @~/.arduino15/packages/RaspberryPi/hardware/RaspberryPi/4.1.1/lib/RaspberryPi/platform_def.txt -DLWIP_IPV6=0 -DLWIP_IPV4=1 -DLWIP_IGMP=1 -DLWIP_CHECKSUM_CTRL_PER_NETIF=1 -c -fno-rtti -std=gnu++17 -iprefix~/.arduino15/packages/RaspberryPi/hardware/RaspberryPi/4.1.1/ @~/.arduino15/packages/RaspberryPi/hardware/RaspberryPi/4.1.1/lib/RaspberryPi/platform_inc.txt @~/.arduino15/packages/RaspberryPi/hardware/RaspberryPi/4.1.1/lib/core_inc.txt -I~/.arduino15/packages/RaspberryPi/hardware/RaspberryPi/4.1.1/cores/rp2040 -I~/.arduino15/packages/RaspberryPi/hardware/RaspberryPi/4.1.1/variants/rpipico -I~/.arduino15/packages/RaspberryPi/hardware/RaspberryPi/4.1.1/include "main.cpp" -o "~/Projets/emCode/embed1/.builds/main.cpp.o"

The first line is the summary and mentions the number of the task and the file. It is activated by default.
The second line provides the full command. It is desactivated by default.

HIDE_NUMBER and HIDE_COMMAND can hide and show the first line or second line. It is recommended to keep at least one option activated.

Edit the main Makefile to modifiy the default options.

 Build option, number and command lines
HIDE_NUMBER = true
HIDE_COMMAND = false

All the messages are displayed on the terminal window of Visual Studio Code.

As an option, the warning and error messages can be displayed as notifications or dialogue boxes.

ConsoleNotificationsDialogue boxes

The warning and error messages are always printed on the terminal window.

*  Executing task: make build -j SELECTED_BOARD=LaunchPad_MSP432P401R_EMT
ERROR             MSP-EXP432P401R board is not defined
.
~/.emCode/Tools/Makefiles/Step1.mk:567: *** Stop. Stop.

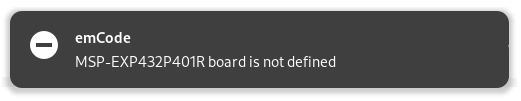

The notifications rely on notify-send.

Install the utility with

sudo apt install libnotify-bin

Edit the main Makefile to add the notification option.

# GUI option for messages
GUI_OPTION = NOTIFY

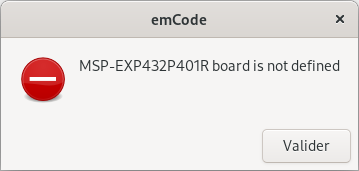

The dialogue boxes rely on zenity.

Edit the main Makefile to add the dialogue box option.

# GUI option for messages
GUI_OPTION = ZENITY

Define a final command¶

Some project may require to run a final command once compilation is successful.

To define a final command,

Open the main Makefile,
Add or edit the line COMMAND_FINAL and
Define the bash command.

 Final command after make,
COMMAND_FINAL = cp $(TARGET_HEX) $(CURRENT_DIR)/

In the example, the final command copies the binary .hex to the folder of the project.

The Report Navigator displays the final command.

---- Final ----
cp ./.builds/emcode.hex .
==== Make done ====

Define other options¶

If the main Makefile doesn’t define or doesn’t set a value to a parameter, the following default values are used.

All those parameters and default values are listed on the emCode/Tools/Makefiles/Step0.mk file.

Parameter	Default value	Comment
`SKETCH_EXTENSION`	`ino`	Official extension
`HIDE_NUMBER`	`false`	Display the summary
`HIDE_COMMAND`	`true`	Print the command line
`HIDE_INFO`	`false`	Display the general information
`HIDE_TOOLS`	`false`	Display the list of tools
`HIDE_ALL`	`false`	Turn on all the hide options
`KEEP_MAIN`	`false`	Update `main.cpp`
`KEEP_TASKS`	`false`	Update the list of tasks
`USE_ARCHIVES`	`true`	Use available pre-compile archives for local libraries
`OPTIMISATION`	`-Os -g3`	Set optimisation and debugging
`BINARY_SPECIFIC_NAME`	`emcode`	Name of the generated executable
`USER_LIB_PATH`	Sketchbook	Full path to the user’s libraries
`APPLICATIONS_PATH`	`$(HOME)/Applications`	Location of the Arduino IDE
`SEGGER_PATH`	`/opt/SEGGER`	Location of the Segger tools
`STM32_CUBE_PATH`	`~/Applications/STM32CubeProgrammer`	Location of the STM32CubeProgrammer tools
`SERIAL_BAUDRATE`	`115200`	Serial speed
`NO_SERIAL_CONSOLE`	`true`	Do not launch the serial console
`GUI_OPTION`	`NONE`	Select the GUI option for messages

By default, USER_LIB_PATH refer to the library sub-folder of the sketchbook folder Arduino defined by Arduino.

When specified, USER_LIB_PATH could be an absolute or a relative path.

USER_LIB_PATH = /home/User/Projects/Libraries
USER_LIB_PATH = ../Libraries

Run batch build¶

emCode can process batch build.

Open a Terminal window;

If the current folder contains different projects, one per sub-folder,

Launch

BOARD="Raspberry_Pi_Pico_RP2040_DebugProbe_CMSIS_DAP"
OPTIONS="HIDE_ALL=true"

for f in */ ;
do
    echo ">>> $f" ;
    if [ -f $f/*.ino ] ;
    then
        cd $f ;
        make build -j SELECTED_BOARD=$BOARD $OPTIONS ;
        cd .. ;
    fi ;
done
